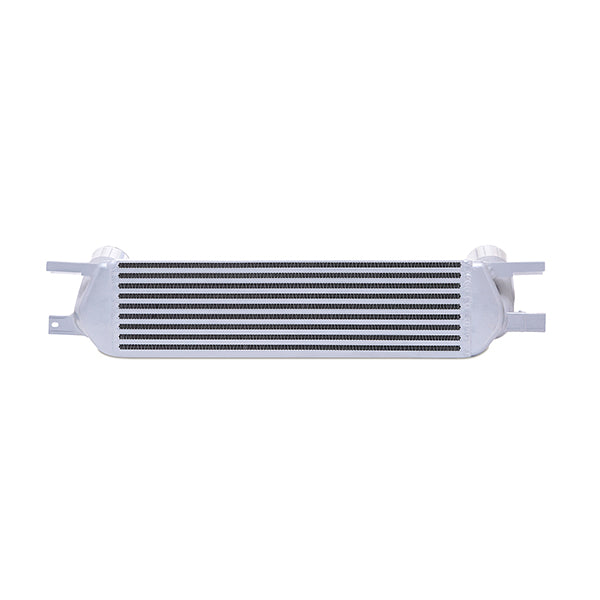

Mishimoto Ford Mustang EcoBoost Intercooler, 2015-2023, Silver – MMINT-MUS4-15SL

For the first time in over 30 years, the iconic Ford Mustang is available with a turbocharged 4-cylinder engine producing over 300 horsepower! Turbocharged 4-cylinder engines produce extremely hot charge air temperatures very quickly within a few laps on the track or aggressive street driving and stock tube-and-fin intercoolers also heat soak very easily. Mishimoto has developed a highly efficient bar-and plate intercooler engineered specifically for the Mustang EcoBoost to keep your air intake temperatures consistently low, run after run. This intercooler is a direct-fit unit requires no modification to your Mustang. The Engineers at Mishimoto designed this intercooler to fit with the stock active grille shutters, as well as prevent airflow blockage to the radiator and AC condenser by mounting it in the stock location. This cooler is constructed with cast end tanks that are CFD tested for maximum airflow and includes an in-tank air diverter, on the hot side, to provide optimal flow through the intercooler. The Mustang EcoBoost Performance Intercooler reduces intake temperatures by 35 F (19.45 C) with minimal pressure loss, has a 25-percent increase in core volume and 165-percent increase in external fin surface area, providing maximum cooling for your Mustang. This intercooler features precision TIG-welding and is available with a Sleek Silver or Stealth Black finish. As with all our products, the Mishimoto Mustang EcoBoost Performance Intercooler includes the Mishimoto Lifetime Warranty.

Features & Benefits

• Direct fit for the 2015-2023 Ford Mustang EcoBoost; 35 F (19.45 C) reduction in AIT; 58-percent increase in core size; 25-percent increase in internal core volume and 165-percent increase in external fin surface area; Cast end tanks and in-tank diverter provide optimal flow through intercooler; Stock location prevents airflow blockage to radiator and AC condenser; Installs in under 2 hours without having to remove front bumper cover; Retains stock active grille shutters, maintaining ideal aerodynamics when cooling demands are lower; Bar-and-plate construction; All-aluminum, TIG-welded; Available in Sleek Silver or Stealth Black; Fits with the Mishimoto Mustang EcoBoost Oil Cooler Kit; Mishimoto Lifetime Warranty;

Vehicle Compatibility

Please check the exact model, variant and production year below before ordering.

• 2015–2023 Ford Mustang EcoBoost — EO D-759-23
• 2015–2023 Ford Mustang EcoBoost Premium — EO D-759-23

Technical Specifications

• Applications: 2015-2023 Ford Mustang EcoBoost
• Engine Codes: 2.3L EcoBoost
• Chassis Codes: S550
• Maximum Recommended Horsepower: 550
• Overall Length (in): 30.3
• Overall Height (in): 6.8
• Overall Width (in): 8
• Core Type: Bar-and-Plate
• Core Length (in): 21.06
• Core Height (in): 5.75
• Inlet (in): 2.56
• Outlet (in): 2.56
• Includes: (1) Mishimoto Intercooler--(1) M6 x 1.0 x 20 Flange Bolt--(1) M4 x 0.7 x 12 Button Head Bolt--(1) M4 Lock Washer--Mishimoto Lifetime Warranty

Mishimoto Part Number: MMINT-MUS4-15SL

Need help checking fitment? Contact Retro Fast Fords before ordering and we can help verify compatibility.
